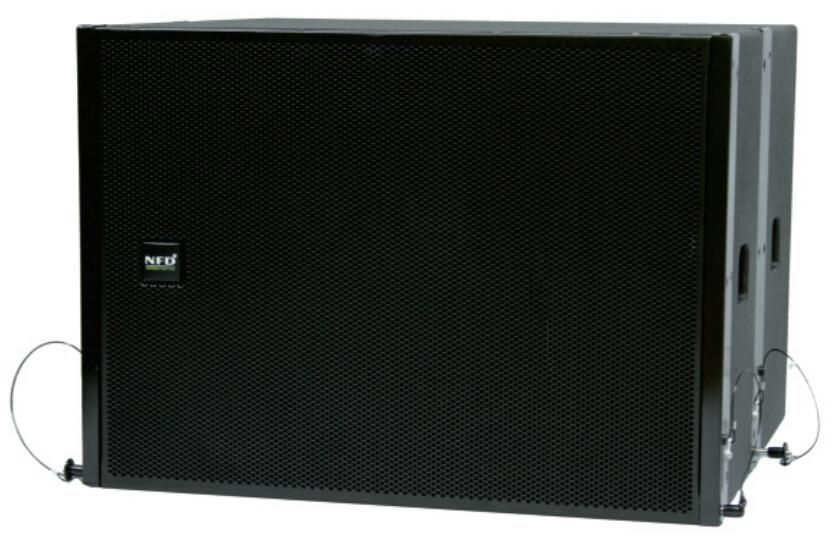

LA-115 woofer for line array systems
◇High quality britch wood material ◆Super grade stainless steel screw ◇Stainless steel grill ◆ISO9001:2015 Management system ◇CE certified ◆Independent patented designed loudspeaker unit ◇Customized designs are available
Adaptive range:
Mainly used for cinema,concert hall, clubs, bars, KTV,conferencing system, auditorium etc;
Technical parameter:

Loudspeaker UnitsLF:1*15(380mm)
Frequency Range45-500Hz
Rated Power(peak)900W AES / 2200W PEAK
Sensitivity100dB
SPL127.4dB continuous/133.4dB
Rated Impedance8 Ohm
Sound Coverage Angle80° or 120×10°
Mode of Connection2 x Neutrik NL 4
Recommending Amplifier1100W-1300W@8 Ohms
Dimension (WxHxD)590mm x 430 mm x 550 mm
Net weight（KG）40kg (with frequencey divider )


Box Structure:LA-115 woofer for line array systems
Detailed information
